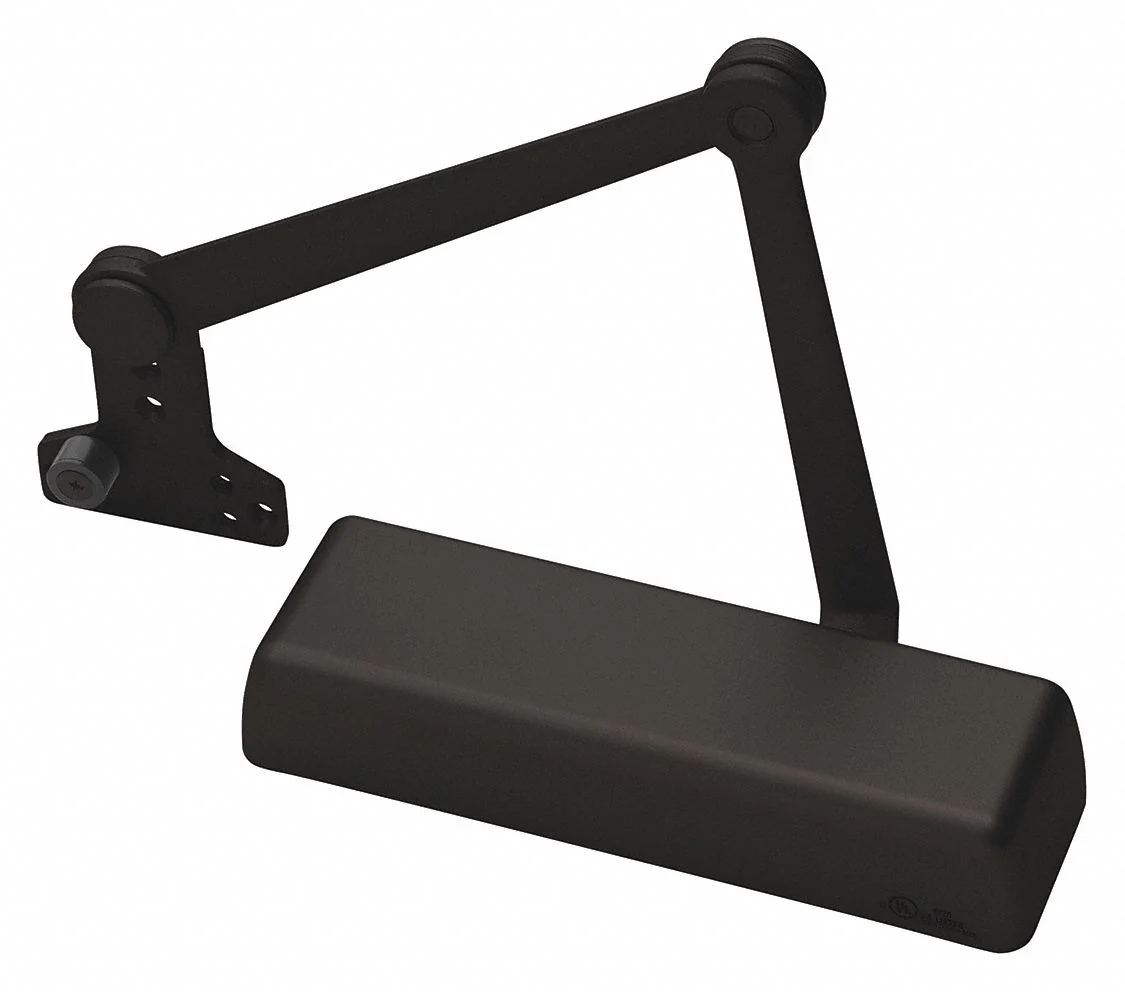

ASSA ABLOY ACCENTRA Heavy Duty Door Closer with Parallel/Standard/Top Frame Mounting, Bronze
Heavy Duty Door Closer with Adjustable Mount
The ASSA ABLOY ACCENTRA Heavy Duty Door Closer boasts a versatile adjustable mount design suitable for parallel, standard, or top frame mounting. Engineered with a robust hydraulic mechanism and durable cast iron material, it ensures smooth and controlled door operation for heavy-duty applications. Its dark bronze finish not only provides a sleek aesthetic but guarantees long-lasting performance.
Key Features:
- Versatile Installation: Can be mounted parallel, on top frame, or as a standard closer.
- Heavy Duty Performance: Engineered for Grade 1 heavy-duty use, supporting doors up to 54 inches wide.
- Adjustability Features: Customize backcheck, closing, and latch speed for optimal functionality.
- Material & Finish: Durable cast iron construction with a stylish dark bronze finish.
- Fire-Rated Safety: ULC Listed for 90-minute fire door assemblies, ensuring safety and compliance.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 5831 x 690 GAV |
| Brand | ASSA ABLOY ACCENTRA |
| Closer Mounting Type | Top Frame |
| Closer Series | 5800 |
| Closer Stop Type | Standard |
| Closer Type | Non-Hold Open |
| Color | Bronze |
| Compatible with Brand | ACCENTRA |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 180 ° |
| Door Opening - Minimum | 120 ° |
| Features | Adjustments for Backcheck, Closing and Latch Speed |
| Finish | Bronze |
| Fire Rating | 90 min |
| Housing Depth | 3-1/2 in |
| Housing Height | 2-1/4 in |
| Energy Source | Hydraulic |
| Includes | Latching Speed Valve |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 54 in |
| Location Use | Exterior |
| Standards | ULC Listed |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 2-1/4 in |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-1/4 in |
| Spring Size | 6 |
| Arm Type | Regular |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 12-1/4 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Sub-brand | Door Closer |
| Length Between Mounting Holes | 5 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Dark Bronze Painted ; Cast Iron ; Bronze |
Frequently Asked Questions (FAQ):
Q: How do I install the door closer?
A: The ASSA ABLOY ACCENTRA Door Closer is designed for easy installation with all necessary hardware included. Follow the clear guidelines for mounting on top frame, parallel arm, or standard configurations.
Q: Can this door closer be used for exterior doors?
A: Yes, this door closer is suitable for exterior doors, providing robust and reliable performance in various weather conditions.
Q: What is the maximum door width compatibility?
A: This closer is designed to work with doors up to 54 inches in width.
Q: Does the door closer meet ADA compliance?
A: Yes, it meets ADA compliance standards, ensuring ease of use for individuals with disabilities.
Q: Is this door closer fire-rated?
A: Yes, it is ULC Listed for a 90-minute fire rating, providing added safety in fire door assemblies.
Elevate Entryways with Timeless Elegance
Transform ordinary doorways into captivating entries with the ASSA ABLOY ACCENTRA Door Closer, a masterpiece of form and function. Its refined dark bronze finish adds a touch of warmth and sophistication, seamlessly blending into both modern and classical décor. With its heavy-duty craftmanship, this closer ensures fluid, whisper-quiet operations, achieving both aesthetic and acoustic harmony in any space. Essential for creating a luxurious entrance, this piece is poised to redefine elegance in functional mechanics.
Enhance your entryways with the ASSA ABLOY ACCENTRA Door Closer—order today for superior durability and design.
