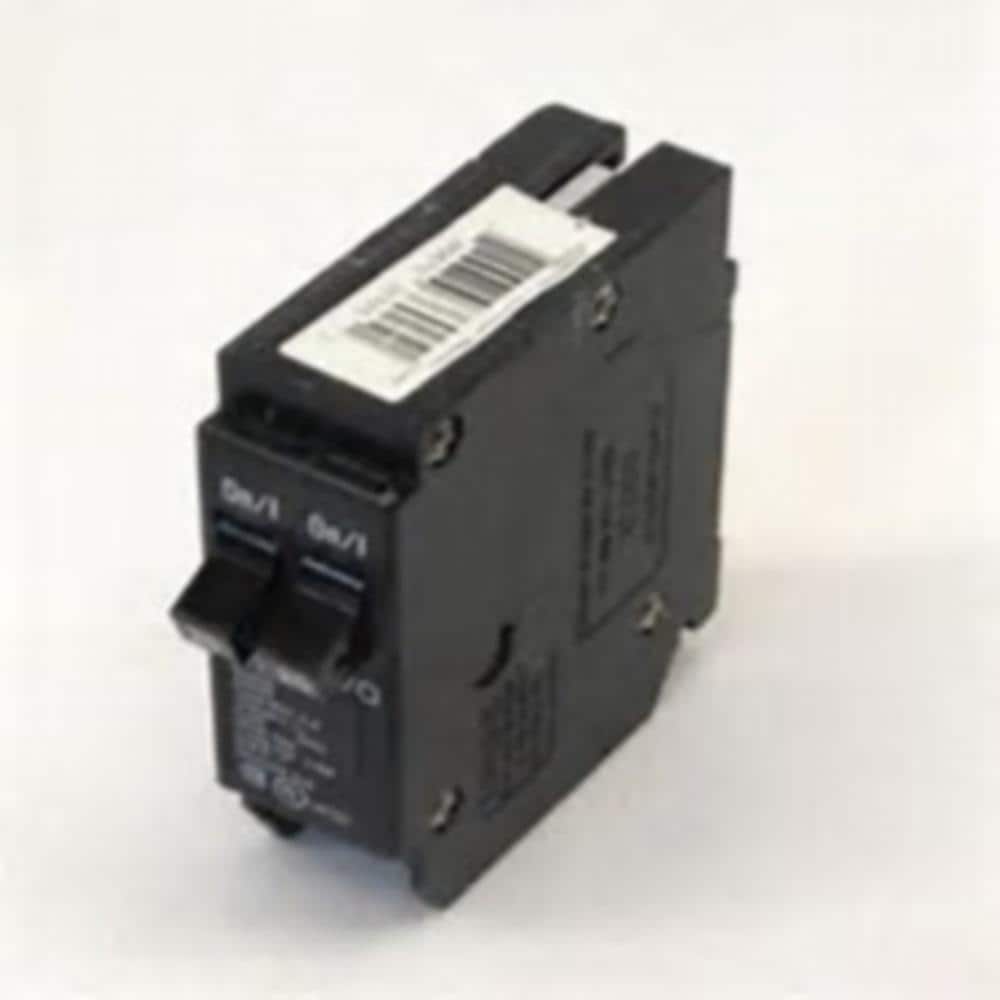

Eaton BD 2-20 Amp Single Pole Tandem CTL Circuit Breaker
Eaton 20 Amp Single Pole Tandem Circuit Breaker
The Eaton BD 2-20 Amp Single Pole Tandem CTL Circuit Breaker efficiently powers two circuits from a single space in your loadcenter, optimizing electrical panel capacity. Featuring a thermal magnetic trip unit, this breaker ensures dependable protection against overloads and short circuits. Its unique rejection tab allows it to fit only in specified panels, enhancing safety and compliance.
Key Features:
- Feature: Allows two circuits from one space - optimizes loadcenter usage.
- Durability: Switch-duty rated for reliable performance.
- Compatibility: Fits notched stabs on circuit-limiting panels.
- Versatility: Suitable for type BR load centers.
- Safety: Built-in rejection tab ensures proper installation.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Amperage (A) | 20 A |
| Breaker Type | Tandem |
| Connection Type | Neutral |
| Interruption Type | Standard Trip |
| Mounting Type | Plug-On |
| Number of Poles | Double |
| Number of Spaces | 1 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.37 lb |
| Series Type | BR |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | ANSI Certified,CSA Certified,UL Listed |
| Manufacturer Warranty | 10 Years |
| Product Depth (in.) | 2.89 in |
| Product Height (in.) | 3.1 in |
| Product Width (in.) | 0.98 in |
Frequently Asked Questions (FAQ):
Q: What load centers is this breaker compatible with?
A: This tandem circuit breaker is compatible with Eaton type BR load centers.
Q: How does the breaker trip mechanism work?
A: The Eaton BD2020 features a thermal magnetic trip unit that responds to overloads and short circuits.
Q: Are there any special installation requirements?
A: Yes, this breaker is designed to fit only in panels with notched stabs due to its rejection tab feature.
Q: What is the amperage for each circuit?
A: Each circuit can handle up to 20 Amps.
Q: What is the voltage rating for this breaker?
A: The voltage rating for this breaker is 120/240 V.
Effortless Integration, Confident Protection
The Eaton 20 Amp Single Pole Tandem Circuit Breaker revolutionizes your electrical setup with its dual-circuit capability in a slender form. Its sleek design minimizes clutter, making it perfect for any modern home or professional workspace. Cleverly engineered to fit into space-efficient panels, it'll transform your power management with elegance. Elevate your circuits' integrity and ensure a safe environment, making this breaker an indispensable fixture for any sophisticated interior.
Enhance your electrical system with the Eaton 20 Amp Tandem Circuit Breaker, and enjoy efficient, reliable performance today!
